Time Measurement System CABLE
Shipping notice
Immediately available
Article-No.: L4060
Notice!
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
Ideal for use in sports clubs.
Time Measurement System CABLE

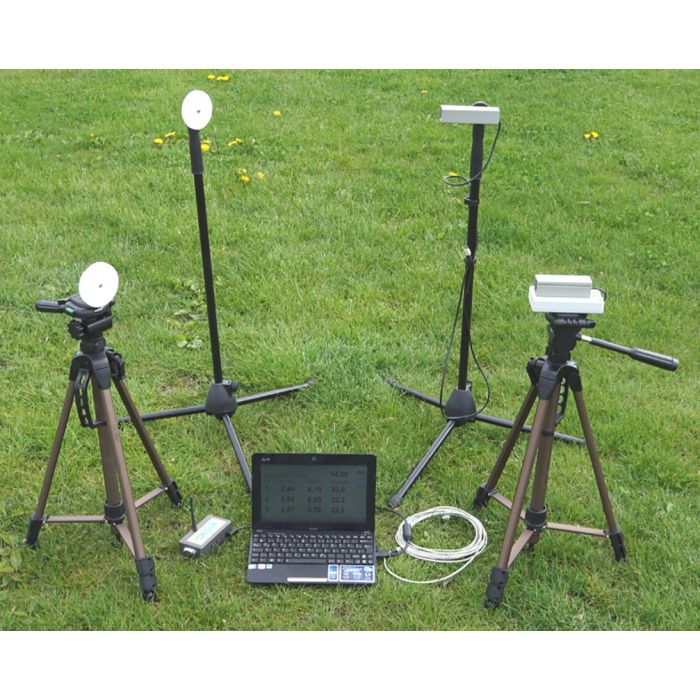

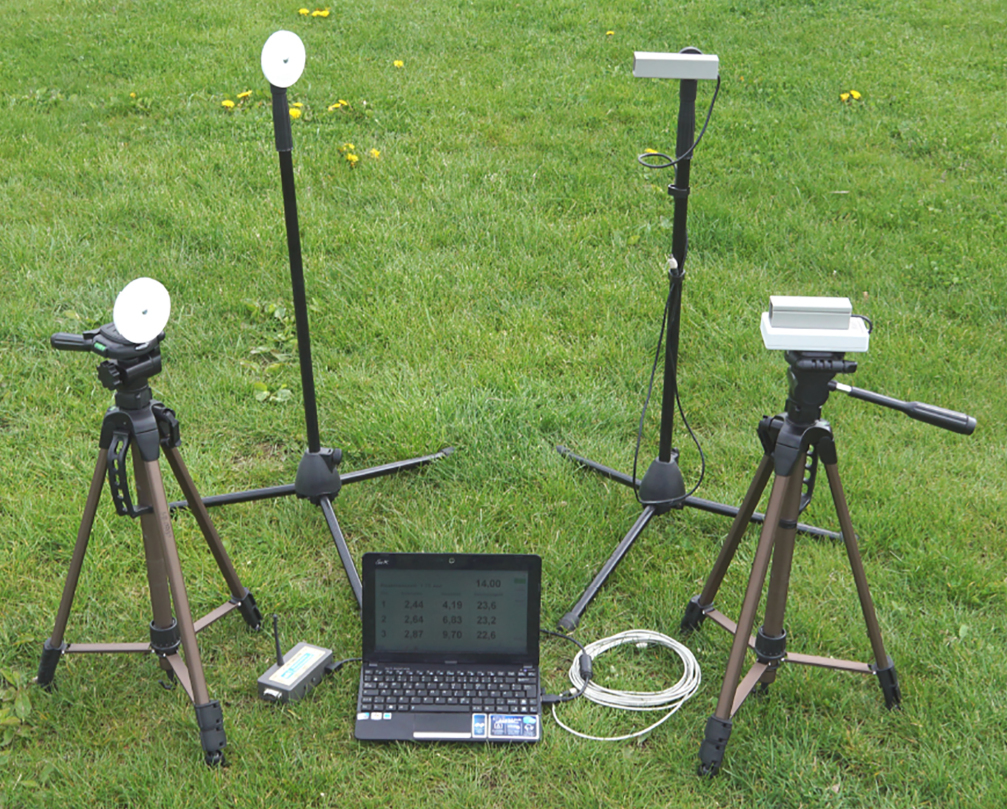

Timing system for sprint measurements or for start-finish measurements for tracks up to 100m in length. The running times are recorded, stored in CSV format, and can be imported by Excel or databases.
You can choose between camera tripods and microphone stands. Camera tripods can also be used on uneven surfaces, but they are a bit less stable. Microphone stands require a very even surface (rubberized track, artificial turf, etc.) but are quite stable in return.
Please specify the needed cable length and the type of stands when placing your order.
You can choose between camera tripods and microphone stands. Camera tripods can also be used on uneven surfaces, but they are a bit less stable. Microphone stands require a very even surface (rubberized track, artificial turf, etc.) but are quite stable in return.
Please specify the needed cable length and the type of stands when placing your order.
Features
- Complete off-grid system
- 1 USB adapter for 2 light barriers
- Universal time tracking software uvsWatch for up to 4 measurement lines
- 2 light barriers with a maximum gate width of 8 m
- 2 control cables with lengths of 5 m and 100 m on a cable reel
- Assembly and operating instructions
- Laptop not included in delivery
- 1 USB adapter for 2 light barriers
- Universal time tracking software uvsWatch for up to 4 measurement lines
- 2 light barriers with a maximum gate width of 8 m
- 2 control cables with lengths of 5 m and 100 m on a cable reel
- Assembly and operating instructions
- Laptop not included in delivery
Optional additional equipment available
Please let us know as accurately as possible for what purpose (sport, number of participants, ground, etc.) you need a timekeeping system, so that we can assist you in the best possible way:
- USB adapter for up to 4 light barriers
- Light barriers with a goal width of up to 15m
- Additional light barriers for intermediate times
- Other cable lengths up to a maximum of 100m in one piece
- Starting gun with contact
- PC-controlled starting traffic light
- Upgrade to sprintWatch or sprintTrainer software for measuring section speeds, reaction times, and turn times
- Large displays for spectators
- USB adapter for up to 4 light barriers
- Light barriers with a goal width of up to 15m
- Additional light barriers for intermediate times
- Other cable lengths up to a maximum of 100m in one piece
- Starting gun with contact
- PC-controlled starting traffic light
- Upgrade to sprintWatch or sprintTrainer software for measuring section speeds, reaction times, and turn times
- Large displays for spectators
Product datasheet
Print page or download as PDFScope of Supply
Scope of delivery:

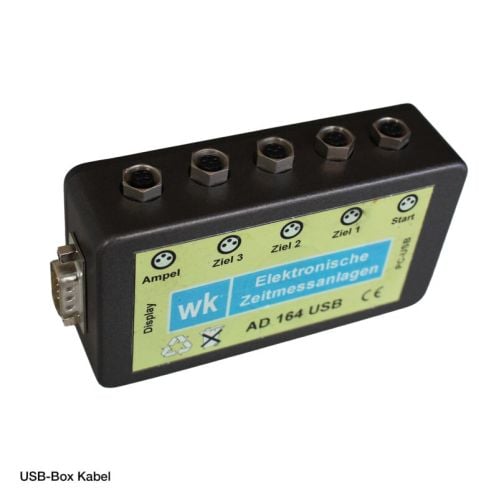

- 1 USB adapter AD 164 USB 2 light barriers with software

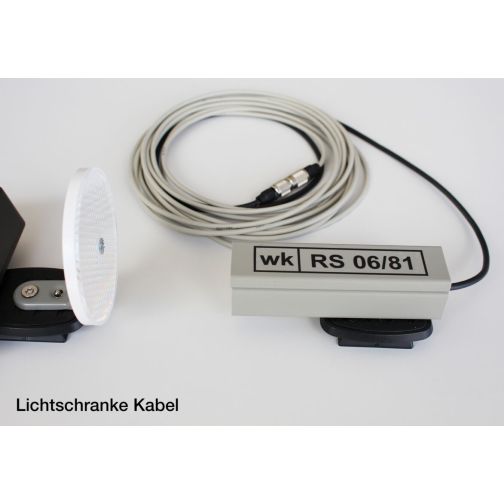

- 2 light barriers RS 06/81 on photo or microphone stands
- 2 control cables with a length of 5 m and 100 m, unless otherwise agreed
- Assembly and operating instructions, excluding laptop
Product information
Dimensions
shipping weight
15 kg
Properties & Features
Operation site
indoor & outdoor
Colour
black
Weight
15 kg
