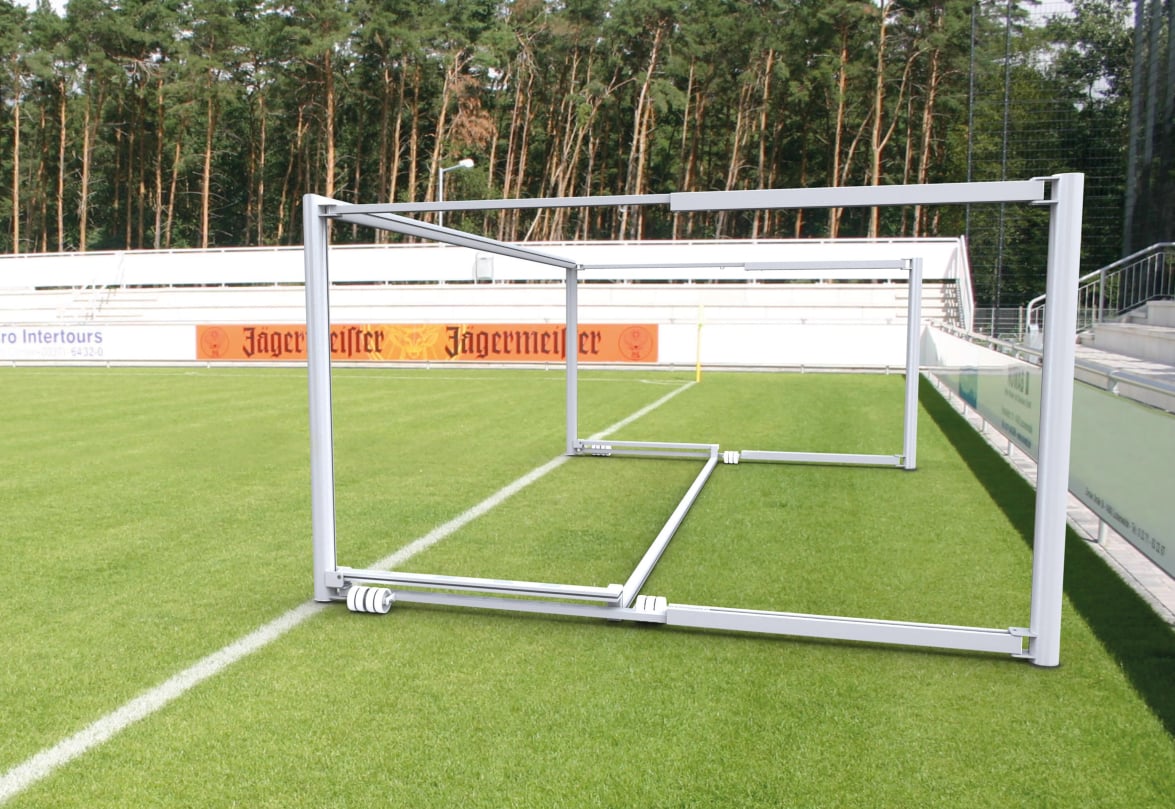

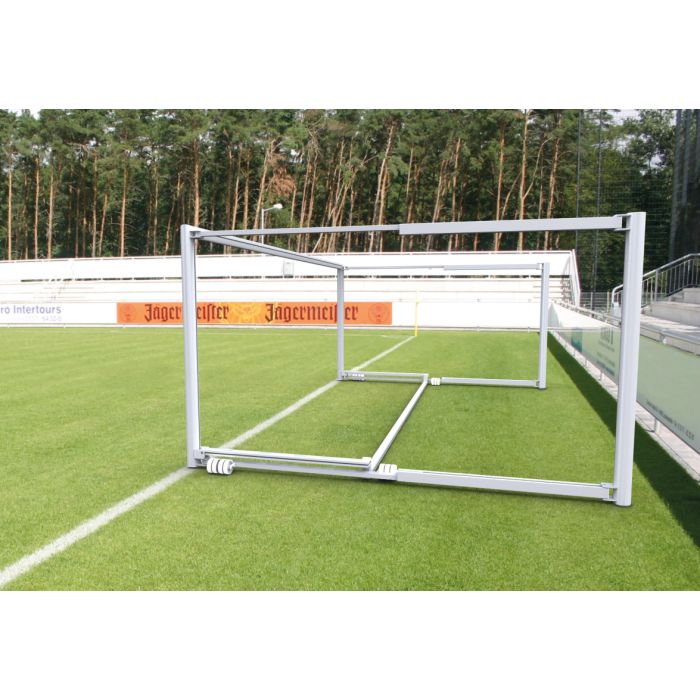

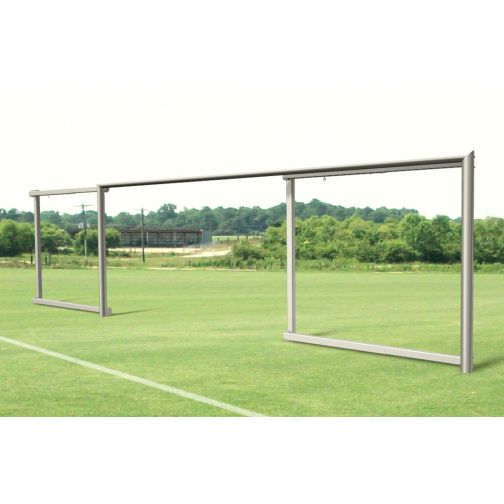

Kübler Sport Swiveling Youth Soccer Goal

The swivel gates are extremely robust, solid, and extremely space-saving due to their swivel construction. The projection can be adjusted between 3.50 m and 4.50 m (other projection on request).

The swivel gate (youth goal 5 x 2 m) is concreted into ground sleeves outside the playing field and can be easily swung aside by one person using the attached rolling system. The base frame can be folded up and is made of aluminum rectangular profile with 75 x 50 mm. The rear goal holder is also a rectangular profile with dimensions of 80 x 80 mm. The insertion depth of the ground sleeves is 350 mm.

The swivel goal can be quickly and easily pushed to the playing field line as needed by one person. With the swivel posts embedded in concrete, the goal is 100% protected against tipping. The crossbar and the posts of the swivel goal have the usual oval profile of 120 x 100 mm.

- Goal dimensions: 5.00 x 2.00 m
- Outreach: Adjustable from 3.50 to 4.50 m, other measurements available upon request
- Profile posts/latte: 120 x 100 mm
- Profile for rear goal support: 80 x 80 mm
- Profile for base frame: 75 x 50 mm
- Delivery in pairs

- The sports equipment is exclusively designed for the specified sport and must not be used for other purposes!
- The connections of the sports equipment must be checked for correct and secure fastening before use!
- The sports equipment must be secured against tipping over and unintended shifting!
- Climbing on or hanging from the sports equipment, attachments, or accessories is not allowed and can lead to accidents!
- Only the accessories or attachments provided by the manufacturer are permitted!
- Regular maintenance is mandatory to identify wear and tear, damages, and looseness early on!
- The manufacturer shall not be liable for damages or injuries resulting from improper assembly, use, or maintenance of the sports equipment.
