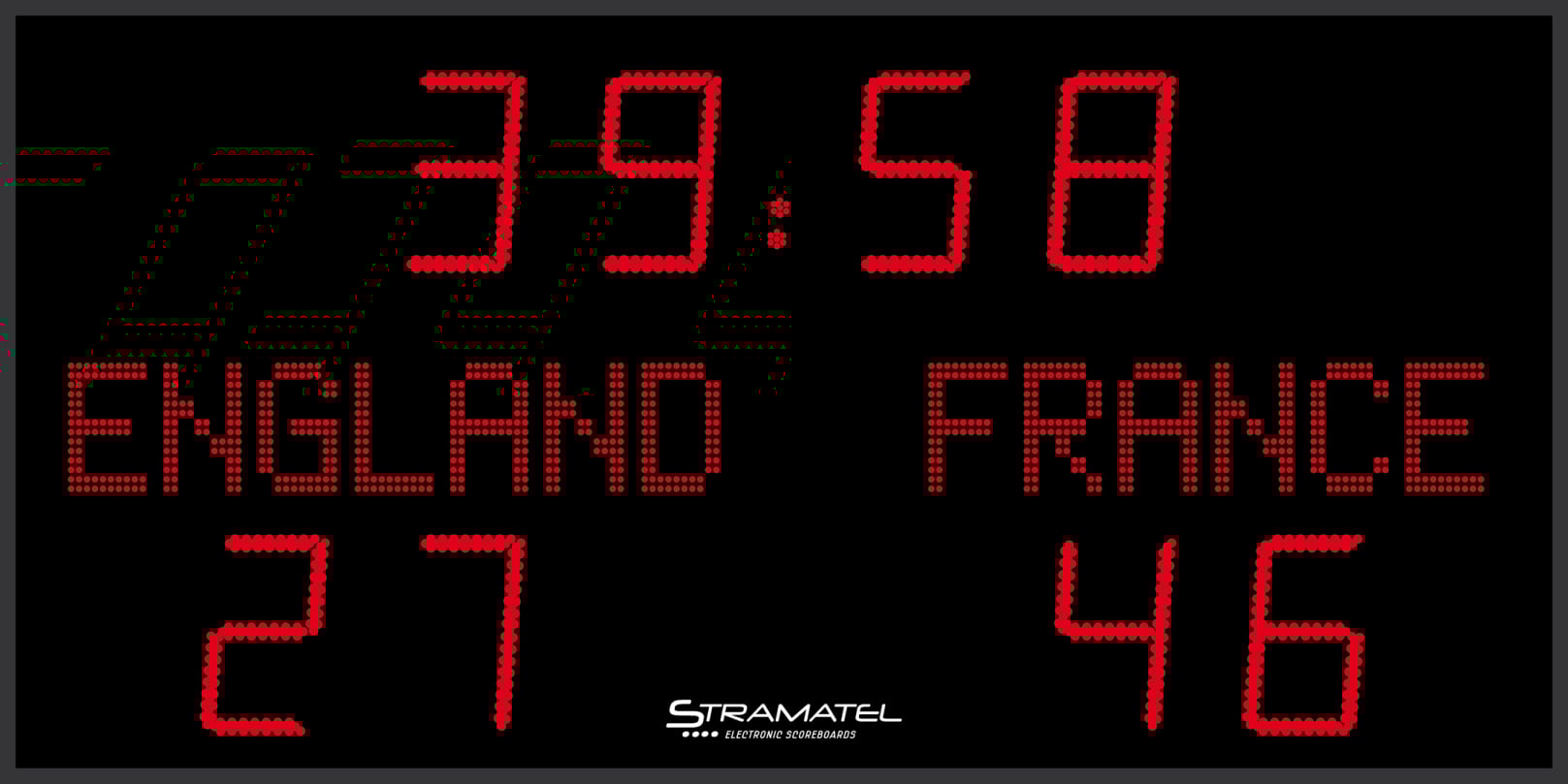

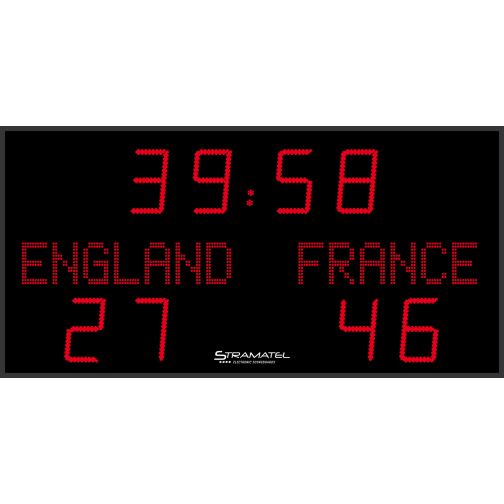

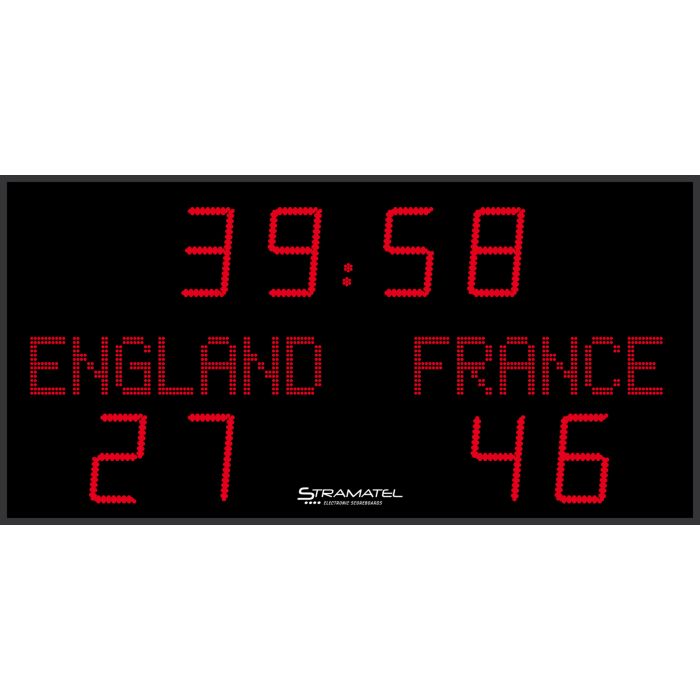

Stramatel® Outdoor Scoreboard FRB AD

Outdoor and stadium scoreboard for soccer, rugby, and field hockey.

- Application area: Outdoor
- Control: Wireless (868 MHz) or cable
- Readability: 120 m, viewing angle >160°
- Dimensions: 2000 x 1000 x 90 mm
- Weight: 38 kg
- Power supply: 230V / 50-60Hz Power consumption: 192 VA
- Front side: Made of polycarbonate, matte black, anti-glare, impact resistant (DIN 18032-3)
- Power cable (supplied): 5 m (without plug) - Type: 230V, 3G, 0.75 mm²
- Transmission cable: for cable-controlled models or wireless models with cable set connection box + 50 m rigid transmission cable (display board/connection box) - Type: 4-wire telephone cable 6/10 + 10 m flexible DIN/DIN transmission cable (connection box/control panel)
- Mounting: on I-beam (adjustable mounting) or on the wall (with mounting brackets)
- Brightness control: adjustable on the control panel

Display functions
- Score: 2 x 2-digit, red (digit height 25 cm)
- Game time/break time: 4-digit, red (25 cm) + 2 flashing LED dots
- Team names: alphanumeric characters, red (16 cm)
- Scrolling text: 1000 characters
- Time: outside of game operation

Control panels
- 1 control panel: (340 x 175 x 60 mm) with LCD display 2-line, 20 characters of 9 mm
- 1 PC keyboard: input of team names and scrolling text
- 1 charger: constantly charge wireless control panels after use (maximum 16 hours runtime)
- USB connection: for program conversion and connection for a PC keyboard
- Program: 3 sports, multilingual program

Stramatel Outsport app: possibility to operate the functions of the display board and share sports results on a smartphone or tablet. The app also offers additional features such as yellow/red cards, ability to add club logos, ... (free app on Google Play)

- 1 scoreboard made of 1 module
- 1 control panel (compatible with Android)
- 1 PC keyboard
- 1 carrying case for storing the panel
- 1 power cable
- Installation and operating instructions
