Steel ball catch fence system with wire mesh panels
12 variants to choose from
Shipping notice
Longer delivery time
Article-No.: vg-003169
Notice!
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.

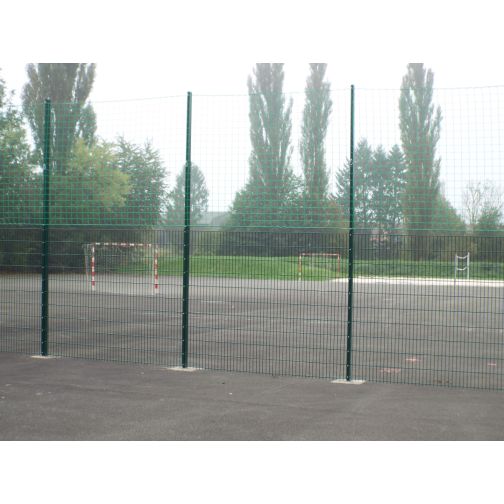

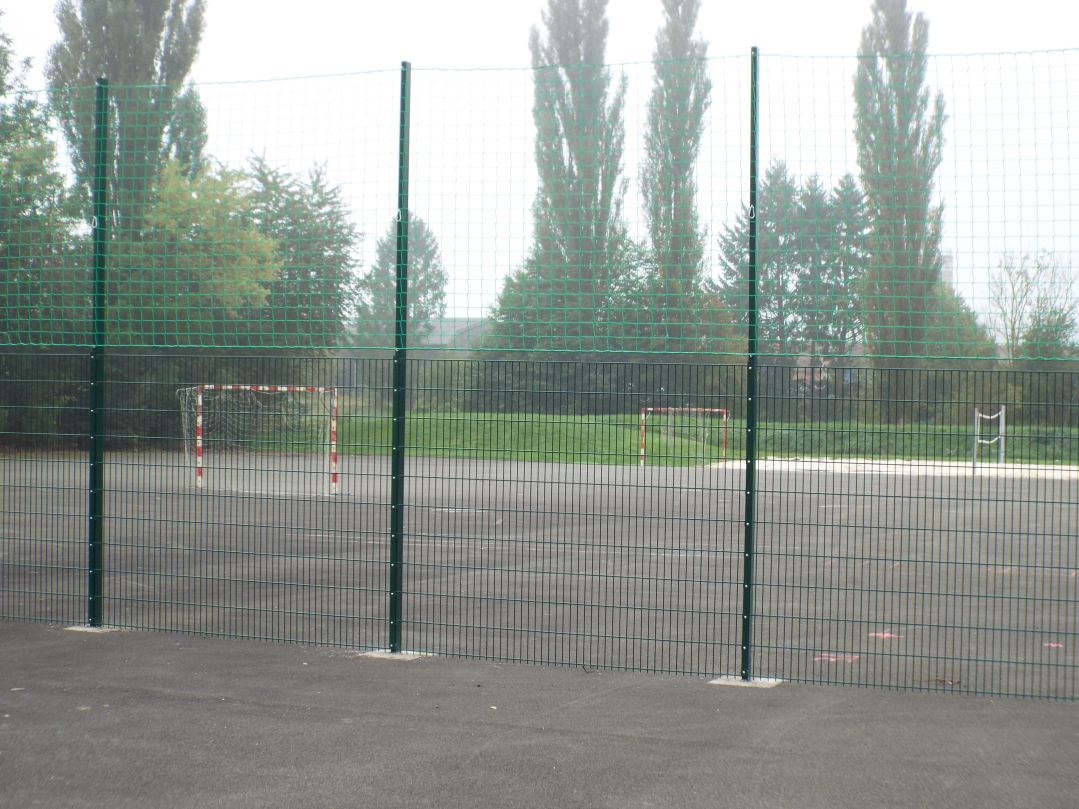

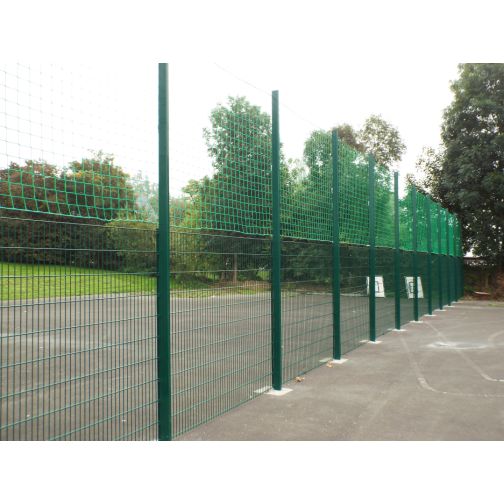

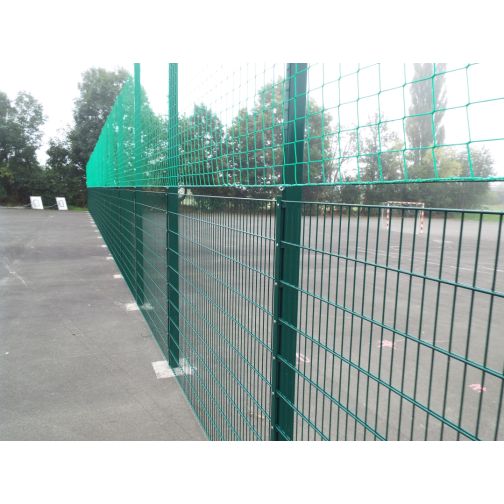

Steel ball catch fence system with wire mesh panels
Ideal ball stop netting for all sports clubs and public sports facilities with dimensions of 25 m length and 4 m height above ground. The ball stop netting is made of steel with a post spacing of 2.5 m. Across the entire width up to 2 m height, tightly meshed double rod mesh panels made of steel are attached. The ball stop netting has a general group statics. Meets the requirements for low-noise ball stop netting. Standard delivery does not include protective netting. Available in RAL colors upon request or alternatively in galvanized steel.
Features

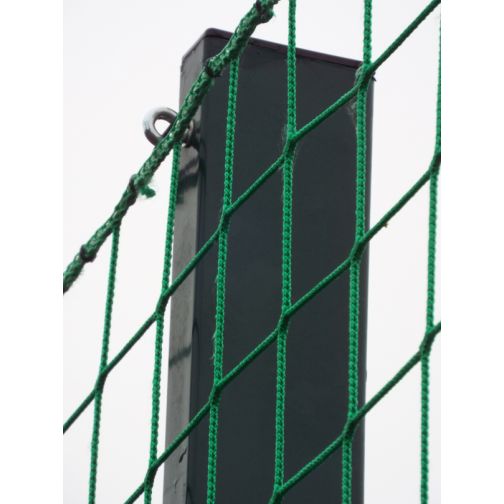

- Steel profile post: 100 x 40 mm (or 120 x 40 for 6 m (long corridor), 3 mm thickness)
- Post spacing: 2.5 m
- Double bar matting: 2.5 m x 2.03 m, mesh size: 50 x 200 mm
- Double bar matting wire thickness: vertical 6 mm, horizontal 8 mm.

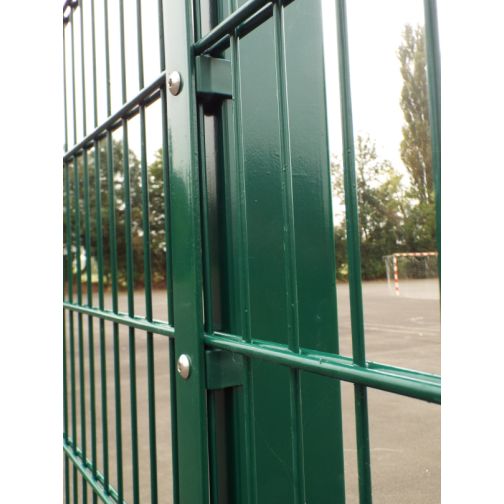

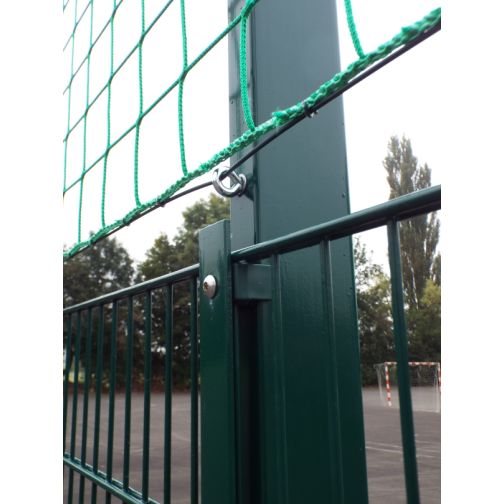

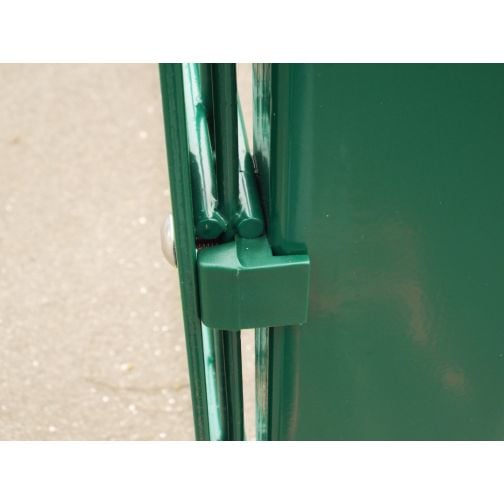

- Includes plastic mat holder, blind rivet nut M8, including plastic PA 6 cap and cover strip in the format 40 x 5 mm
- Delivery does not include a safety net for the upper area
- Post spacing: 2.5 m
- Double bar matting: 2.5 m x 2.03 m, mesh size: 50 x 200 mm
- Double bar matting wire thickness: vertical 6 mm, horizontal 8 mm.
- Includes plastic mat holder, blind rivet nut M8, including plastic PA 6 cap and cover strip in the format 40 x 5 mm
- Delivery does not include a safety net for the upper area
Advantages
- General statics
- Posts are directly embedded in concrete without ground sleeves
- Easily attachable double bar mesh panels up to 2m
- Posts are directly embedded in concrete without ground sleeves
- Easily attachable double bar mesh panels up to 2m
Product datasheet
