Inter-Play® Outdoor Skiläufer

The Inter-Play® Skier is an element from the series of outdoor aerobic equipment. The exercise simulates the movement of cross-country skiing: counter-moving both halves of the body as well as the arms and legs of one half of the body. This engages both upper and lower muscle groups, improves endurance, and enhances motor coordination.

The device is made of corrosion-protected and powder-coated steel. The arms and handles are made of a tube with a size of 42.4 x 3.2 mm, which is suitable for excellent ergonomics and user safety. The tube handles are equipped with spherical decorative elements. The entire structure is welded and has no plastic ends, except for bearing connections, where individual parts of the device can be serviced/repaired. The levers and rosettes are made of 8 to 10 mm thick sheet steel. The device includes self-lubricating roller bearings with the possibility of maintenance. The stepping boards are made of aluminum.

The device is mounted on a support post, which consists of a tube of 88.9 x 3.6 mm. The mast is secured to the ground with a diameter of 220 mm and a 12 mm thick flange. The flange, along with the entire device, is bolted to the ground with M16 screws. M16 anchor nuts are secured against loosening.

- Device dimensions (LxWxH): 1 x 0.57 x 1.42 m
- Safety zone: 4 x 3.6 m
- Material: Steel, powder-coated
- Weight: approx. 50 kg
- Self-lubricating roller bearings
- Measurement differences of no more than +/- 5% are permissible

- Declaration of conformity with the standard EN 16630:2015-06

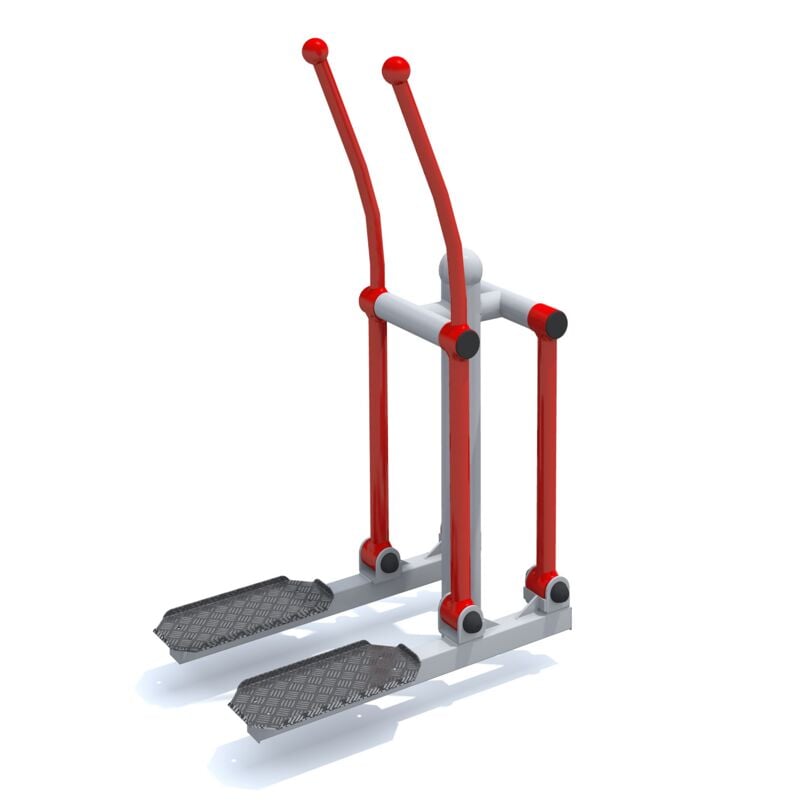

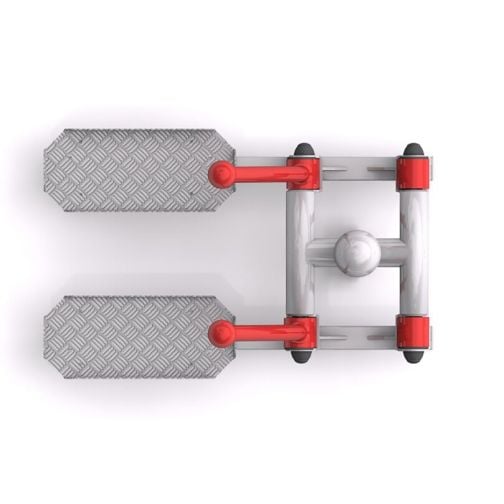

The presented drawing should be seen as illustrative. It may deviate slightly from the actual product. Size differences of up to +/- 5% are permissible.
