Trautwein® Fango Stirrer AR 70 N
Shipping notice
Longer delivery time
Article-No.: T5228
Notice!
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
Ideal for use in therapeutic facilities.

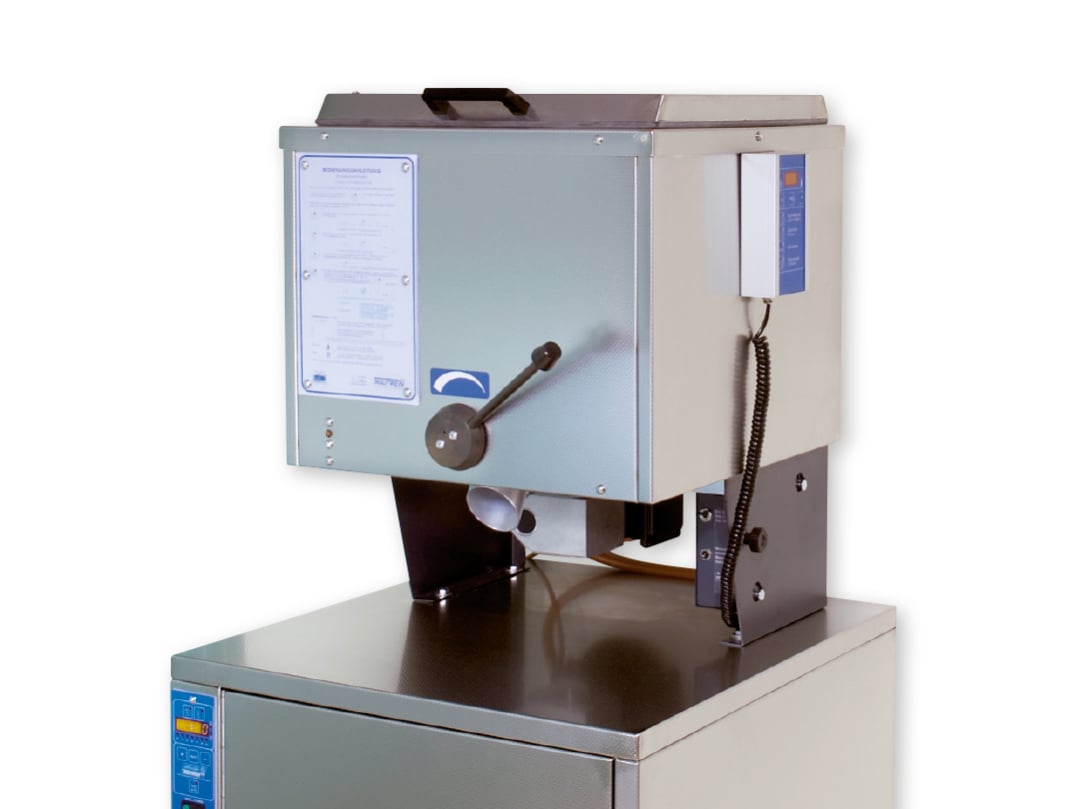

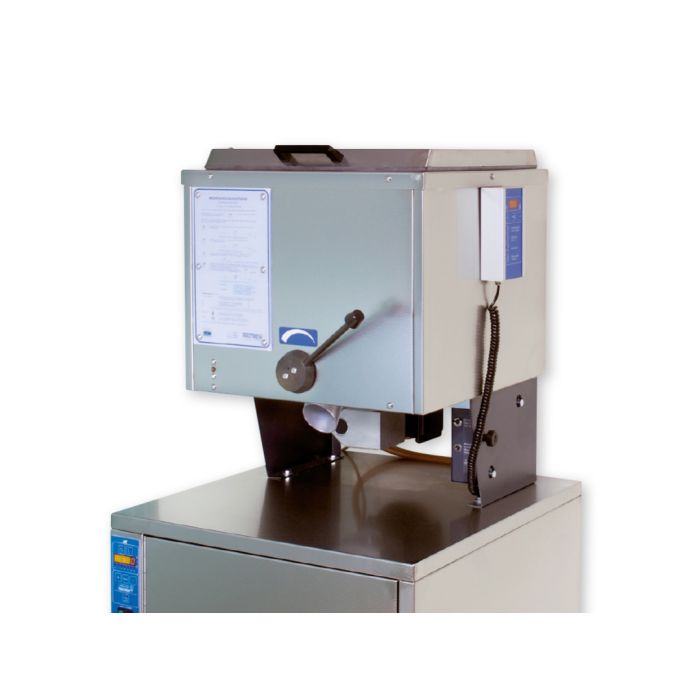

Trautwein® Fango Stirrer AR 70 N
The mud stirrer is used in physical therapy as a preparation device for mud and paraffin mud packs. In the mud stirrer AR70 N, you can prepare and warm up to 85 kg of mud mass. The highly compacted aluminum kettle allows for gentle and energy-efficient heating of the mud. The stirrer can be used as a tabletop device or placed on a warming cabinet using the attached brackets.
The special counterflow agitator ensures a uniform mixing and heating of the mud mass. The heated outlet valve prevents clogging and clumping of the mass, allowing the paraffin mud to be evenly distributed on the mud plate. The mud stirrer is mounted in the mud kitchen or on a warming cabinet using screws (diameter: 8 mm).
Difference between aluminum and stainless steel kettle:
The kettle of the mud stirrer is available in stainless steel and aluminum versions. In the stainless steel stirrer, heat transfer is done through a heat transfer oil. The bottom of the kettle is hermetically sealed with maintenance-free heat transfer oil. This special construction ensures energy-efficient heating with a consumption advantage of approximately 30%. This allows you to keep operating costs low during use.
Note on general mud application:
In physical therapy, mud or mud packs are used in heat therapy. The mud mass, or mud-paraffin, is heated in a large kettle and dispensed through the outlet valve. Usually, the mud mass is dispensed onto a plate and then stored in a warming cabinet for application. The thermal mud is kept warm on the body area using mud foil and mud towels, thereby exerting its effect.
The special counterflow agitator ensures a uniform mixing and heating of the mud mass. The heated outlet valve prevents clogging and clumping of the mass, allowing the paraffin mud to be evenly distributed on the mud plate. The mud stirrer is mounted in the mud kitchen or on a warming cabinet using screws (diameter: 8 mm).
Difference between aluminum and stainless steel kettle:
The kettle of the mud stirrer is available in stainless steel and aluminum versions. In the stainless steel stirrer, heat transfer is done through a heat transfer oil. The bottom of the kettle is hermetically sealed with maintenance-free heat transfer oil. This special construction ensures energy-efficient heating with a consumption advantage of approximately 30%. This allows you to keep operating costs low during use.
Note on general mud application:
In physical therapy, mud or mud packs are used in heat therapy. The mud mass, or mud-paraffin, is heated in a large kettle and dispensed through the outlet valve. Usually, the mud mass is dispensed onto a plate and then stored in a warming cabinet for application. The thermal mud is kept warm on the body area using mud foil and mud towels, thereby exerting its effect.
Features
- With control panel for adjusting functions
- Load capacity: approximately 85 kg of fango mass
- Heating power: 3 kW
- Average power consumption: 105 Watt/kg
- Dimensions: (WxDxH) 63x63x76.5 cm
- Power: 400 V (optional: 230 V for an additional charge: T5232)
- Load capacity: approximately 85 kg of fango mass
- Heating power: 3 kW
- Average power consumption: 105 Watt/kg
- Dimensions: (WxDxH) 63x63x76.5 cm
- Power: 400 V (optional: 230 V for an additional charge: T5232)
Advantages
- Highly compressed aluminum kettle
- With removable stirring wing
- Heated outlet tap
- Cladding made of stainless steel sheet
- With removable stirring wing
- Heated outlet tap
- Cladding made of stainless steel sheet
Stirrer Comfort Control - Our recommendation for efficient practical operation
The comfort control (T5231) offers additional operating comfort and energy-saving settings. With the weekend and holiday program (daily setting), heating can be efficiently set economically. The sterilization automatic ensures a gentle heating of the fango mass and the cooling stirring overnight.
Medical device according to MDR EU Directive 2017/745Classification according to MDR: Class I
