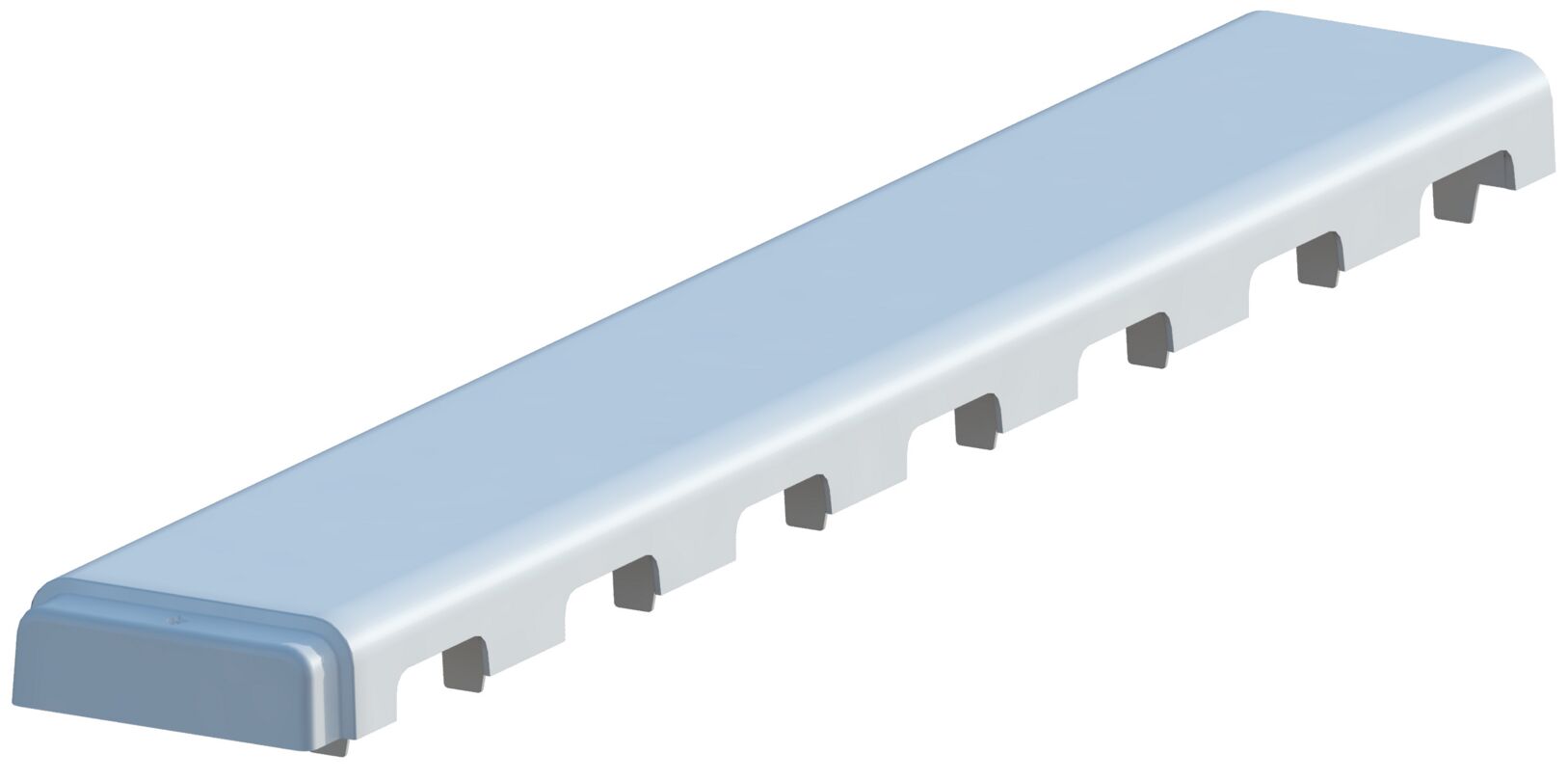

Covers for hollow profile guttering

Cover for hollow profile gutters according to DIN 18035-3. The mobile plastic covers are easily inserted into the slots of the gutters using bolts. The predetermined positioning of the bolts beneath the cover automatically limits the running track to its inner edge when the gutter cover is laid on the slot gutters, providing variable opening possibilities for access from the circular track to the sectors. The slot openings arranged on both sides of the cover according to the standard ensure unobstructed water entry from the running track and sports surface into the slot gutters.

- UV-resistant material GF-UP (glass fiber reinforced plastic with unsaturated polyester resin)
- Wall thickness 5 mm, break-proof
- Self-supporting due to wide contact surface and weight of approximately 2.4 kg
- Rounded edges with r=20 mm according to DIN 18035
- Overlapping end faces with integrated fixing pin, secure against horizontal displacement
- Precise and fast installation thanks to screwed guide pins
- High self-cleaning effect due to white, smooth surface structure
- Load capacity class A 15 according to DIN 18035, tested according to EN 1433
- Optional with locking set
- Technical data: Construction length: 99.8 cm, construction width: 16 cm, construction height: 5 cm
- Weight: 2.4 kg

In order to conduct running competitions over a distance of 200 m or more, the indoor track must be delimited by a barrier according to IWR regulations. This barrier, with a height of 5 cm and a width greater than 5 cm, should be made of easily manageable elements that can be temporarily removed to facilitate the execution of technical competitions.
