Clamp rail suspension for steel beams including roller joint
4 variants to choose from
Shipping notice
Longer delivery time
Article-No.: vg-002516
Notice!
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.

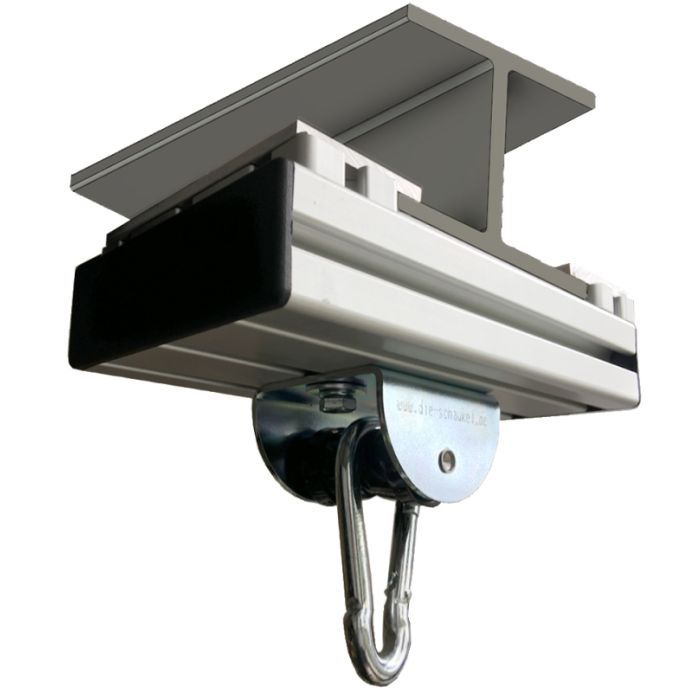

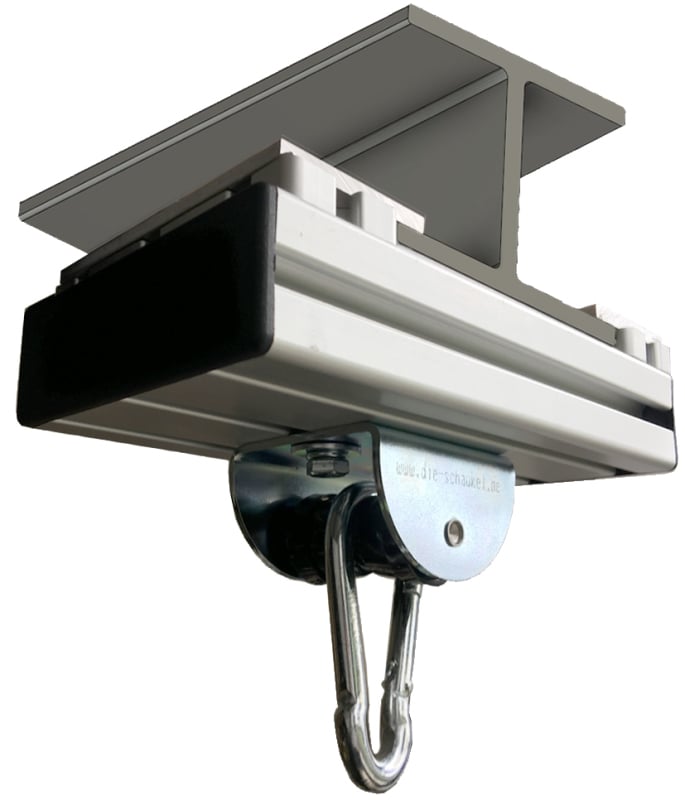

Clamp rail suspension for steel beams including roller joint
Whether it's swings, hammocks, hanging chairs, or punching bags, the clamp bar is universally applicable for attaching hanging elements to H-beams (TT-beams).
The clamps are simply pushed together and fastened on the top side. On the bottom side, there are three slots where the roller joint can be mounted lengthwise or crosswise to the slots.
Flange width up to 100 mm: For steel beams HEB 50 - HEB 90
Flange width up to 150 mm: For steel beams HEB 100, HEB 120, HEB 140
Flange width up to 200 mm: For steel beams HEB 160, HEB 180, HEB 200
Flange width up to 250 mm: For steel beams HEB 220, HEB 240
Important: Only suitable for flange heights (flange thickness) from 4 to 17 mm! For custom measurements, please feel free to contact us.
The clamps are simply pushed together and fastened on the top side. On the bottom side, there are three slots where the roller joint can be mounted lengthwise or crosswise to the slots.
Flange width up to 100 mm: For steel beams HEB 50 - HEB 90
Flange width up to 150 mm: For steel beams HEB 100, HEB 120, HEB 140
Flange width up to 200 mm: For steel beams HEB 160, HEB 180, HEB 200
Flange width up to 250 mm: For steel beams HEB 220, HEB 240
Important: Only suitable for flange heights (flange thickness) from 4 to 17 mm! For custom measurements, please feel free to contact us.
Features
- Length: Depending on the version 15 - 30 cm
- Dimensions (W x H): 12 x 7 cm
- Weight: 1.5 - 3.6 kg
- Load capacity per ball joint: 125 kg
- Material: Anodized aluminum
- Complies with DIN EN 71-1/8 and DIN EN 1176-1/2
- Flange widths: up to 100 mm, up to 150 mm, up to 200 mm, up to 250 mm
- Expandable with the MARATHON® ball joint (G1828)
- Dimensions (W x H): 12 x 7 cm
- Weight: 1.5 - 3.6 kg
- Load capacity per ball joint: 125 kg
- Material: Anodized aluminum
- Complies with DIN EN 71-1/8 and DIN EN 1176-1/2
- Flange widths: up to 100 mm, up to 150 mm, up to 200 mm, up to 250 mm
- Expandable with the MARATHON® ball joint (G1828)
Advantages
- No drilling necessary
- Easy installation
- Adjustable for all common steel beams
- Easy installation
- Adjustable for all common steel beams
Product datasheet
Print page or download as PDFScope of Supply
- 1 x Aluminum profile rail (3-way groove) with clamping set
- 1 x MARATHON® rolling joint
- Mounting material
- Operating instructions
