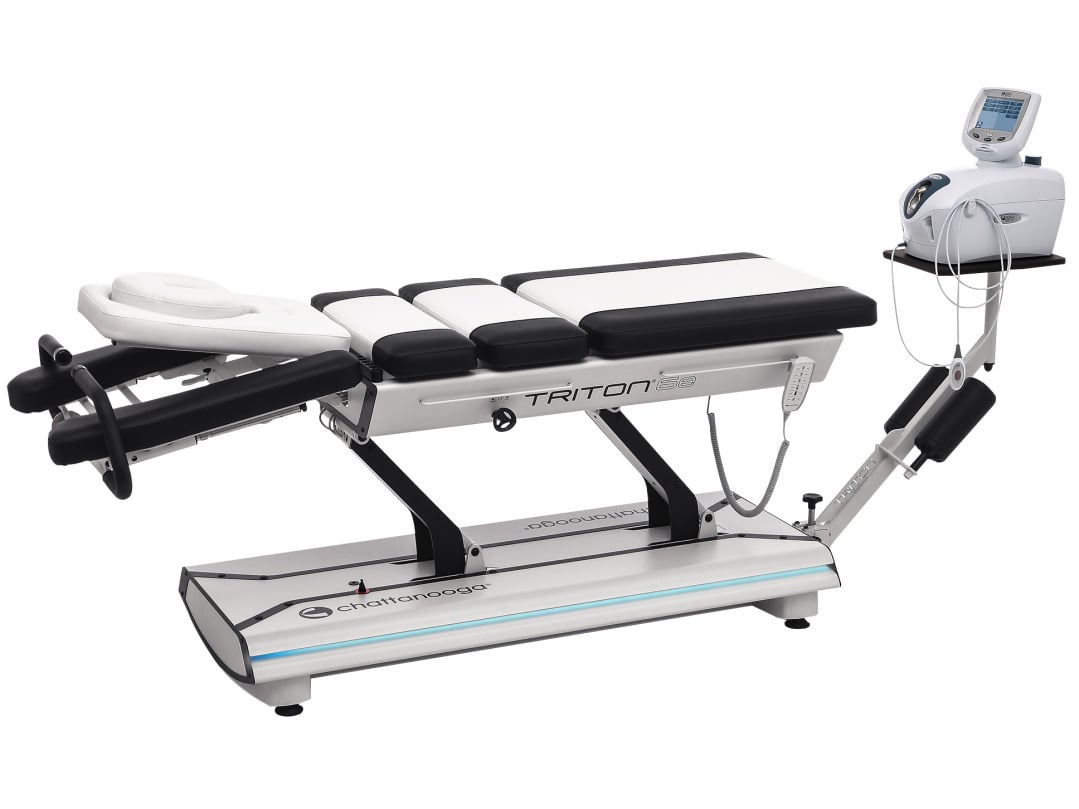

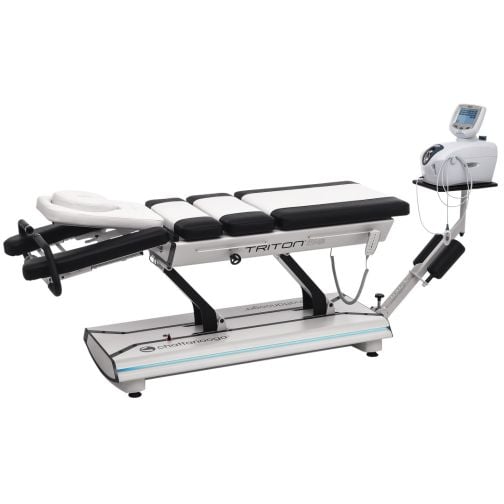

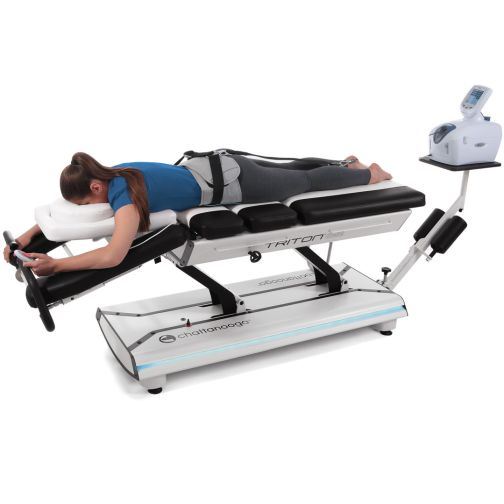

CHATTANOOGA® Triton DTS® Traction Table

Manual and mechanical traction and decompression have been used for years to treat spinal problems with nerve root compression, acute muscle spasms, and osteoarthritic disc herniations. The new TRITON 6E / 6M DTS® traction system from Chattanooga® provides therapists with an innovative and functional traction device. The Triton system, consisting of a table and traction device, mimics the subtle nuances of the therapist's hand movements and expands modern traction therapy with new features.

Models:
- TRITON 6E DTS® Traction System: Consists of the TRITON 6E DTS® traction table with heat function provided by an integrated heating system in the backrest and the TRITON DTS® package.
- TRITON 6M DTS® Traction System: Consists of the TRITON 6M DTS® traction table and the TRITON DTS® package.

Standard Accessories TRITON DTS® Package:
- TRITON DTS® traction device with EMG module
- Patient switch
- Patient smart card
- TRITON DTS® belt system
- Saunders cervical traction device
- Knee pad set
- Stabilizer pressure biofeedback
- User manual

Technical specifications:
- Weight: 14 kg
- Dimensions: 45 x 24 x 45 cm
- Electrical safety class: Class 1, Type B

Traction Table Technical Specifications:
- Weight: 198 kg
- Dimensions: 207 x 70 x 48 to 95 cm
- Length: with traction device 280 cm
- Electrical safety class: Class 1, Type B
- Head section: Adjustable from -30° to +40°
- Leg section: Adjustable from 0° to +45°
- Heat function in TRITON 6E DTS®: 35 and 38 C°
- Upholstery color: White/Black and optional Blue
- Weight capacity: up to 200 kg

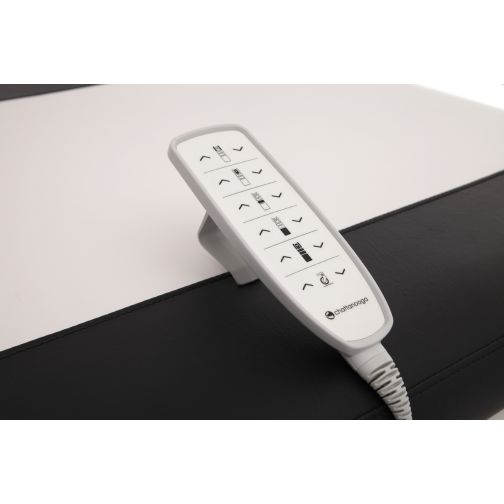

- Height adjustable via remote control and foot switch
- Electrically retractable transport wheels

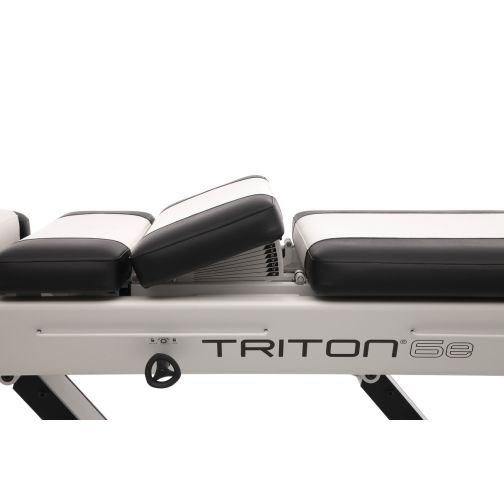

- Electric adjustment of table segments
- Foldable handles
- LED lighting

Delivery:
The delivery includes special delivery by freight carrier, installation, complete assembly, and training in accordance with MPG regulations.

- Heat function provided by integrated heating in the back cushion
- Unique traction patterns that realistically simulate manual traction (decompression)
- High patient comfort through preparation for traction via preloading
- Adjustable duration of preloading, progression, traction, and regression
- Pre-set clinical protocols for cervical and lumbar spine
- Selectable static, intermittent, and cyclical traction
- Library of anatomical images and pathologies accessible via touchscreen
- Ability to save sessions (protocols) for documentation purposes

- Back pain
- Disc and joint pain
- Spondylosis
- Complaints in the facet joint
- Root compression
- Hypomobility
- Compression fractures
- Muscle cramps
- Cervical root syndrome
