Bergo® sports flooring for tennis courts

Bergo Flooring

Shipping notice

Longer delivery time
Article-No.: U5115
Notice!
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
pencil-alt Request product
club
Ideal for use in sports clubs.
public_areaschool
Ideal for school use.
made_in_europeThis product is manufactured in Europe.

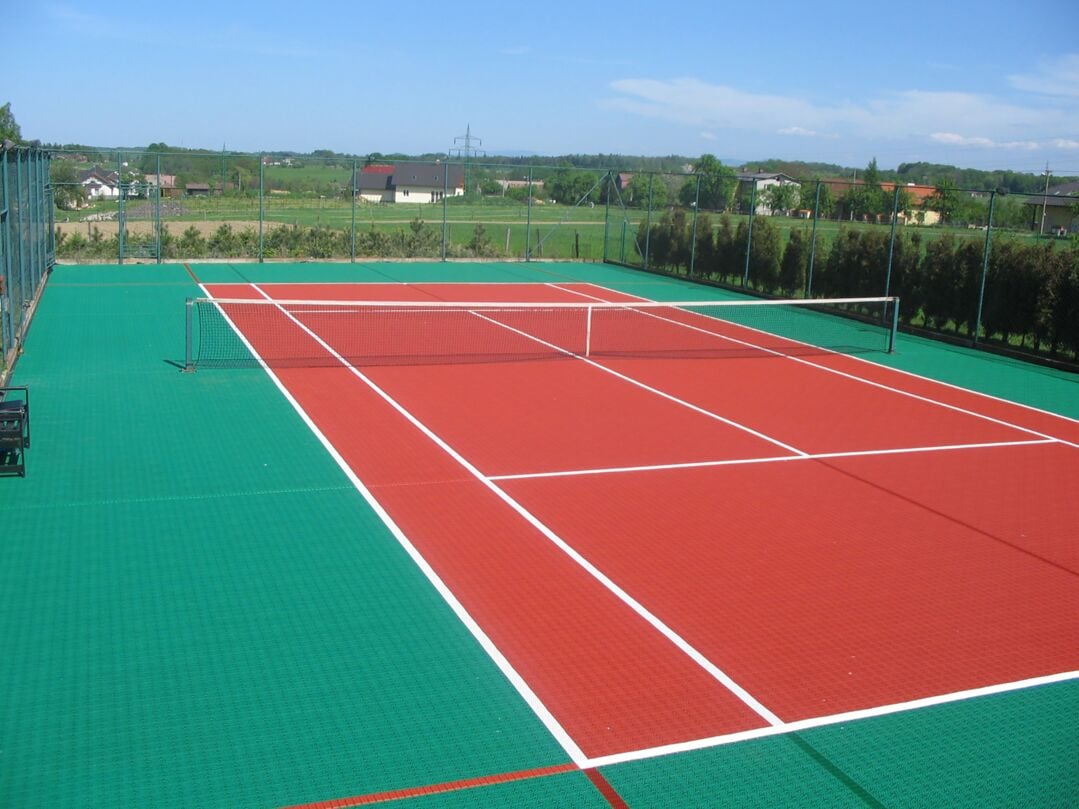

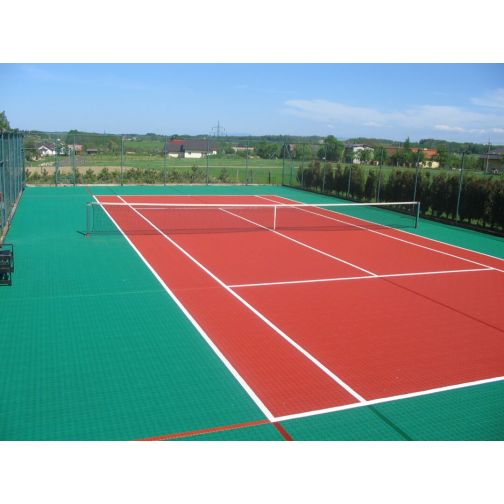

Bergo® sports flooring for tennis courts

Bergo® Flooring combines professionalism and appealing aesthetics in a new generation sports floor. Unlike dull, gray stone playing surfaces, this sports floor offers a colorful alternative that inspires movement. The 100% recyclable polypropylene floor tiles are manufactured and used without chemicals, adhesives, microplastics, or emissions, making them environmentally friendly. Additionally, the material provides cushioning upon landing, resulting in joint-friendly and back-friendly impact. A playing surface made of Bergo® tiles meets all the requirements of EN 14877, including tests for rolling loads (EN 1569) and impact resistance (EN 1517), which allows for a 15-year warranty. The tiles can be easily self-installed and connected. To protect against vandalism, it is recommended to anchor the floor tiles into the ground.

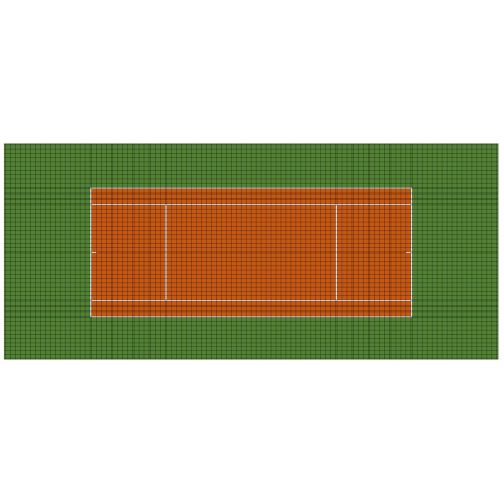

The total area of the tennis court is 36.62 m x 18.57 m, with 23.75 m x 10.95 m being the actual playing surface. The 680 sqm area consists of 6372 individual tiles and includes floor tiles (37.5 cm x 37.5 cm), line tiles (37.5 cm x 5 cm), edge tiles (37.5 cm x 6 cm), line edges (5 cm x 6 cm), and line crosses (5 cm x 5 cm). All tiles can be freely chosen in terms of color to customize the court and give it a personal touch. Circular lines need to be painted separately but can also be chosen in different colors.

Features

- Dimensions (L x W x H): 36.62 x 18.57 x 0.02 m
- Playing field dimensions (L x W x H): 23.75 x 10.95 m
- Quantity: 6,372 individual panels
- Weight: approximately 3,000 kg
- Color: freely selectable
- Material: Polypropylene Composite
- No chemicals, no adhesives, no microplastics, no emissions
- 100% recyclable
- Tested according to EN 14877
- Passed the rolling load test according to EN 1569
- Passed the impact resistance test according to EN 1517
- 15-year warranty
- Water-draining and good ventilation
- Customizable design

Advantages

- customizable
- excellent playing characteristics
- fosters the joy of movement

Recyclable

This product can be partially or fully recycled after use and can be returned to the mineral cycle.

Sustainable production

This product is produced sustainably. Energy, natural resources and the negative impact on the environment were minimized.

Downloads

- Datenblatt U5102 (de) - Datenblatt U5101 (de) - Informationsblatt Bergo Flooring (de) - Montageanleitung Bergo Flooring (de)

Product datasheet

Print page or download as PDF

Scope of Supply

- 6372 Plates
- Disassembly tool

Product information

Dimensions

Width

18.57 m

Height

1.2 cm

Length

36.62 m

shipping weight

3000 kg

Properties & Features

Sports

tennis

Operation site

indoor & outdoor

Division / Performance level

all divisions

Material

polypropylene

Weight

3000 kg
