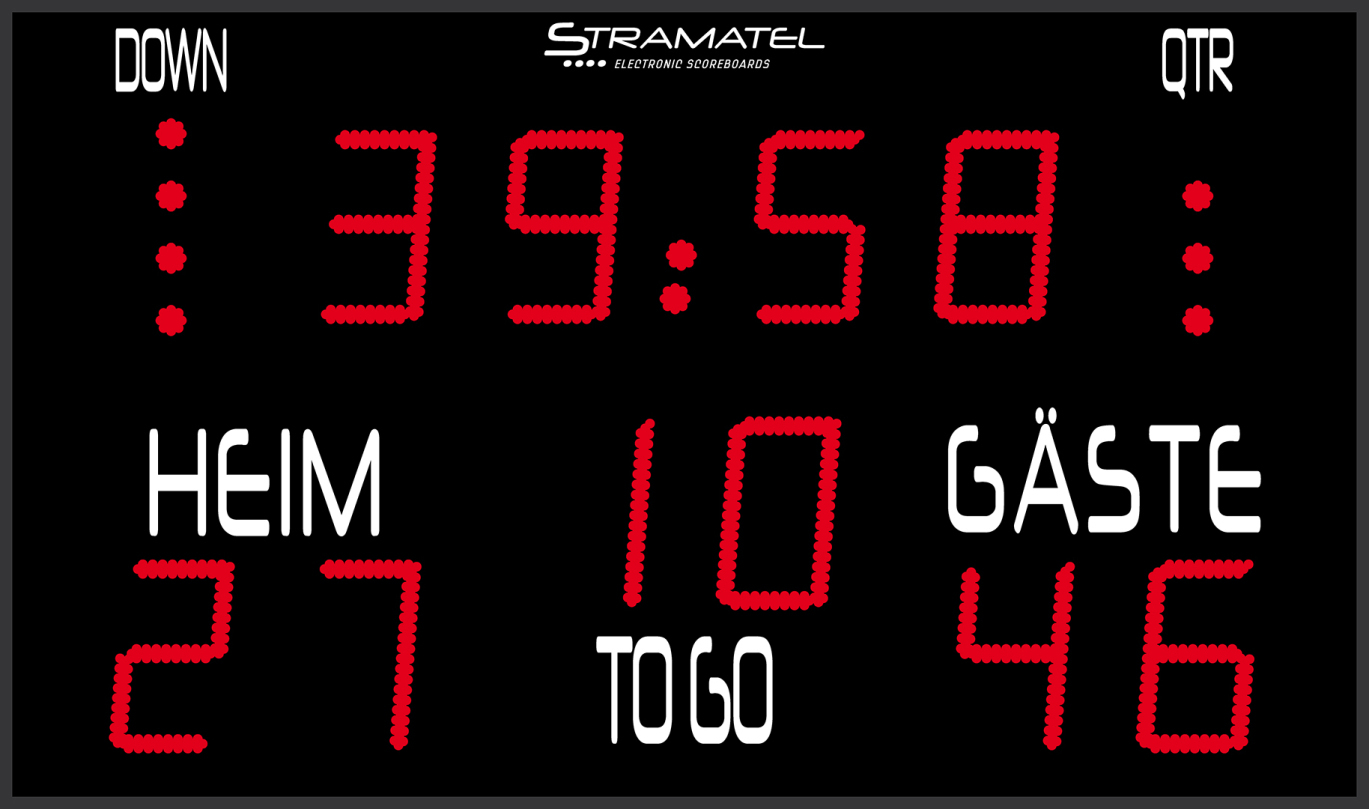

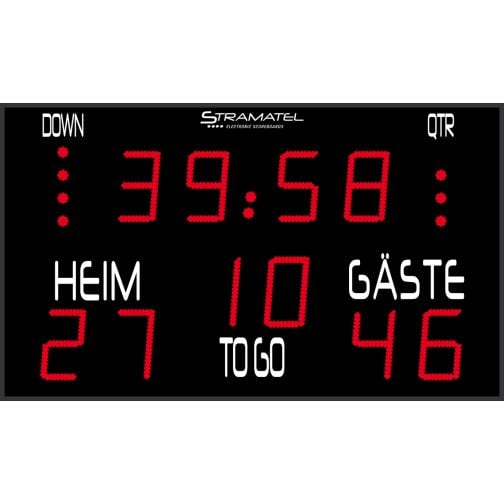

Stramatel® Outdoor Scoreboard FRA US
Shipping notice
Longer delivery time
Article-No.: U3972
Notice!
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
Ideal for use in sports clubs.
Ideal for school use.
The product is ball-proof, which means it withstands the impact of thrown or kicked balls.
This product is manufactured in Europe.Stramatel® Outdoor Scoreboard FRA US
The Outdoor Scoreboard FRA US can be used for multiple sports and provides a comprehensive overview for competitors and spectators with its various display functions.
Features
- Application: Outdoor
- Control: Wireless (868 MHz) or cable
- Readability: 160 m, viewing angle >160°
- Dimensions: 2200 x 1300 x 90 mm
- Weight: 51 kg
- Power supply: 230V / 50-60Hz Power consumption: 98 VA
- Front side: Made of matt black anti-glare polycarbonate, impact resistant (DIN 18032-3)
- Power cable (included): 5 m (without plug) - Type: 230V, 3G, 0.75 mm²
- Transmission cable: For cable-controlled models or wirelessly controlled models with cable set connection box + 50 m rigid transmission cable (display board/connection box) - Type: 4-wire telephone cable 6/10 + 10 m flexible DIN/DIN transmission cable (connection box/control panel)
- Mounting: On I-beam (adjustable mounting) or on the wall (with mounting brackets)
- Brightness control: Adjustable on the control panel
Display functions
- Score: 2 x 2 digits, red (digit height 30 cm)
- Game time/Break time: 4 digits, red (30 cm) + 2 flashing light points
- Down / Qtr: 2 x 4 red light points
- To go: 2 digits, red (digit height 30 cm)
- Time: Outside of game operation
Control panels
- 1 control panel: (340 x 175 x 60 mm) with 2-line LCD display, 20 characters per line, 9 mm in height
- 1 charger: Constantly charge wireless control panels after use (maximum runtime 16 hrs.)
- USB connection: For program conversion and connection to a PC keyboard
- Multilingual program
- Control: Wireless (868 MHz) or cable
- Readability: 160 m, viewing angle >160°
- Dimensions: 2200 x 1300 x 90 mm
- Weight: 51 kg
- Power supply: 230V / 50-60Hz Power consumption: 98 VA
- Front side: Made of matt black anti-glare polycarbonate, impact resistant (DIN 18032-3)
- Power cable (included): 5 m (without plug) - Type: 230V, 3G, 0.75 mm²
- Transmission cable: For cable-controlled models or wirelessly controlled models with cable set connection box + 50 m rigid transmission cable (display board/connection box) - Type: 4-wire telephone cable 6/10 + 10 m flexible DIN/DIN transmission cable (connection box/control panel)
- Mounting: On I-beam (adjustable mounting) or on the wall (with mounting brackets)
- Brightness control: Adjustable on the control panel
Display functions
- Score: 2 x 2 digits, red (digit height 30 cm)
- Game time/Break time: 4 digits, red (30 cm) + 2 flashing light points
- Down / Qtr: 2 x 4 red light points
- To go: 2 digits, red (digit height 30 cm)
- Time: Outside of game operation
Control panels
- 1 control panel: (340 x 175 x 60 mm) with 2-line LCD display, 20 characters per line, 9 mm in height
- 1 charger: Constantly charge wireless control panels after use (maximum runtime 16 hrs.)
- USB connection: For program conversion and connection to a PC keyboard
- Multilingual program
Product datasheet
Print page or download as PDFScope of Supply
- 1 display board made of 1 module
- 1 control panel
- 1 transport case for storing the panel
- 1 power cable
- assembly and operating instructions
Product information
Dimensions
Width
220 cm
Height
130 cm
Thickness
9 cm
shipping weight
58 kg
Properties & Features
Sports
American Football
Operation site
outdoor
Display of team names
Sticker
Visibility
up to 200 m
Control
radio control
Display playing time
Yes
Power supply
grid operation
Colour
black
2nd Colour
red
Weight
51 kg
